Disiplin: Vinge, utsatt, drage
Ferdighetsnivå: Nybegynner til avansert
De nyutviklede Jet High Aspect-foliene er konstruert for maksimal effektivitet og ytelse.

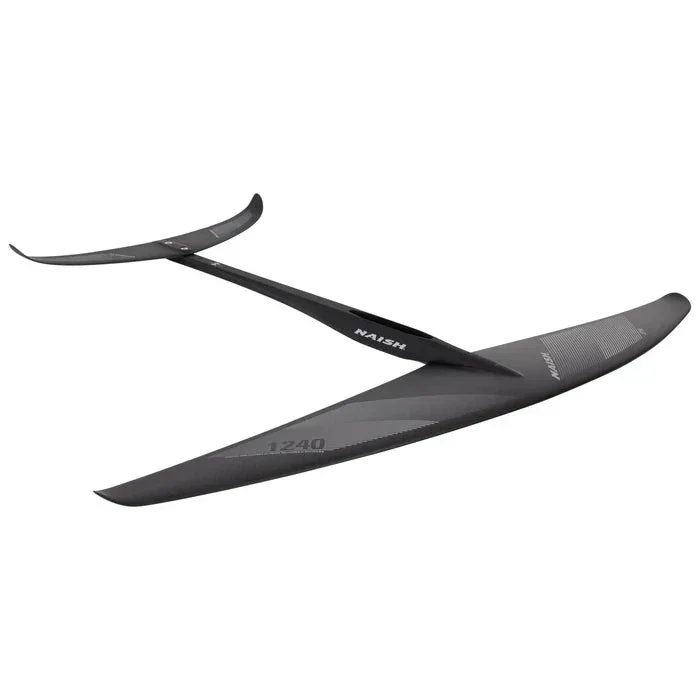

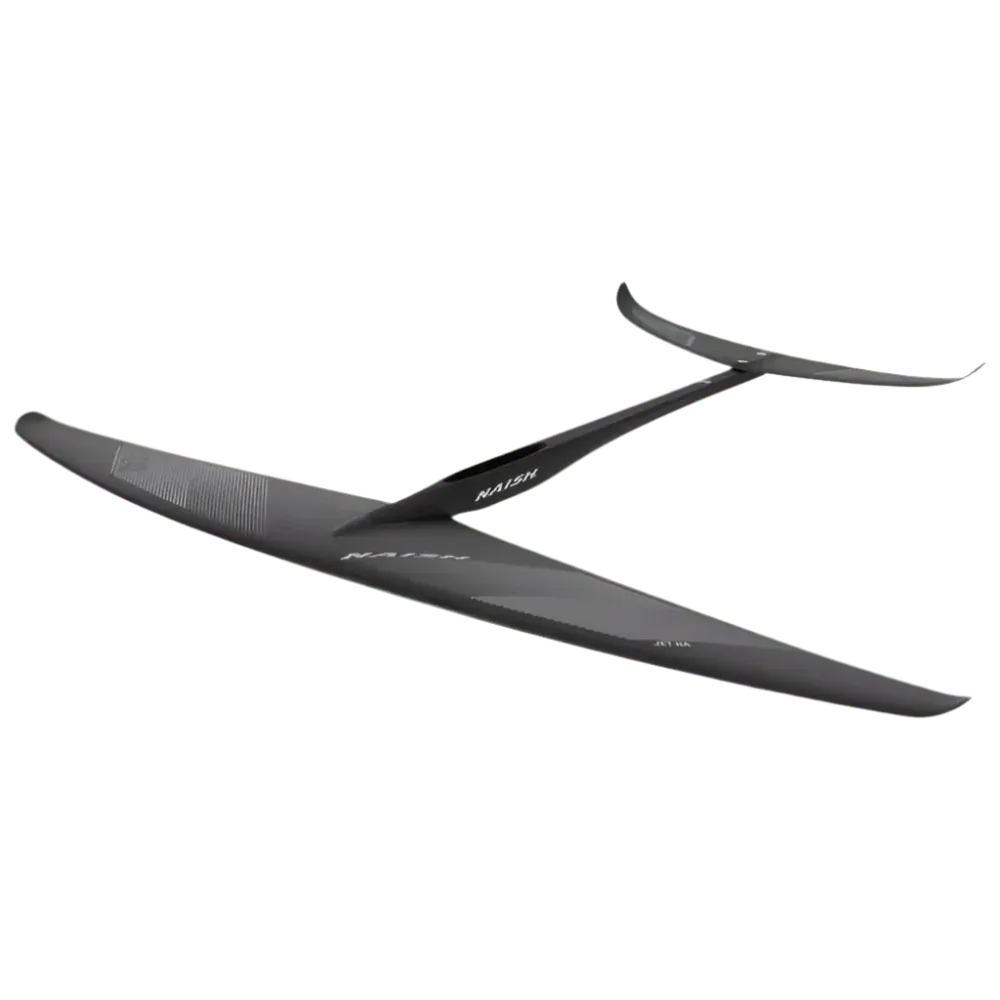

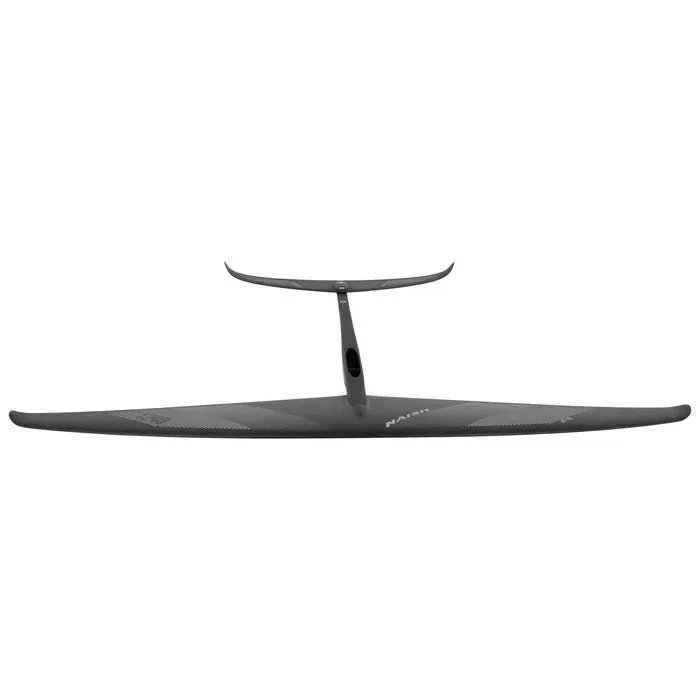

The newly developed Jet High Aspect foils have been engineered for maximum efficiency and performance. They feature an increased leading edge area allowing for narrower foil sections, resulting in improved glide and stability. The strategically designed wing tips offer exceptional speed, pumping efficiency, and turning ability. The combination of these elements results in a maneuverability that has never been seen before with HA foils. The slight rake angle reduces drag while providing more control and improved lift during turns. This new design also allows the foil to breach the surface without interrupting laminar flow. The new features on the Jet HA provide an optimized experience that allows riders to foil with ease, making it ideal for all types of riders regardless of skill level. The Jet HA offers an optimal balance between stabilization and performance that ensures smooth handling on any type of wave or swell.
High Aspect
Maximum efficiency and performance.
Narrow foil section
Improved glide and stability.
Newly designed wing tips
Provide exceptional speed, pumping efficiency, and turning ability.
Slight rake angle
Reduces drag while providing more control and improved lift during turns.
100% Prepreg 3K Carbon Outer Layer Satin Finish
Durable and lightweight construction.
Dual Expansion Core Construction
Molded lightweight layup utilizing UD Carbon and Glass Laminate.
Scarf Joint Connection to Fuselage
Proven and compatible with earlier Naish fuselage models

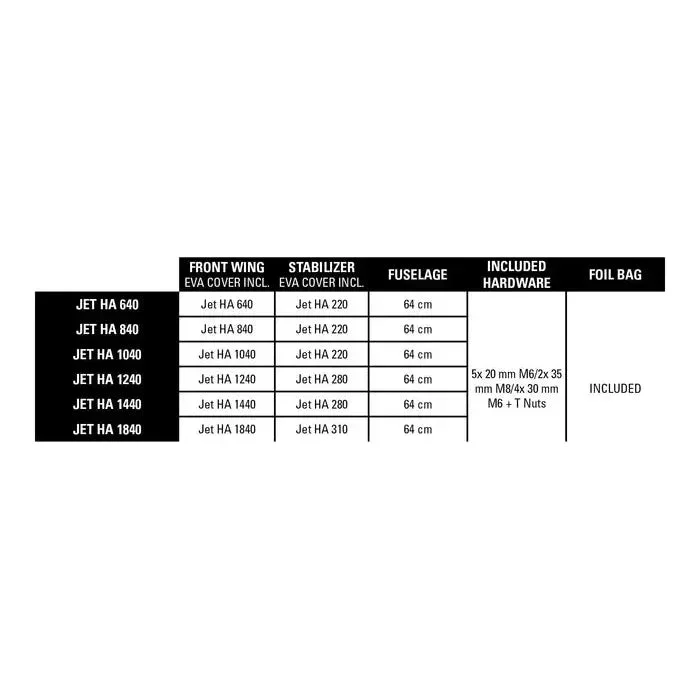

| Size | Front Wing |
Front Wingspan (cm) |
Front Wingspan (in) |
Projected Surface |
Projected Surface |
Aspect Ratio | Stabilizer |
Fuselage |
Fuselage |
Weight (KG) | Weight (LB) | Hardware |
| 640 | Jet HA 640 | 81 | 31.9 | 640 | 99.2 | 10.2 | HA 220 | 64 | 25.2 | 1.542 | 3.4 | 5 x 20 mm M6 / 4 x 30 mm M6 / 4 x T-nuts |
| 840 | Jet HA 840 | 90 | 35.4 | 840 | 130.2 | 9.8 | HA 220 | 64 | 25.2 | 1.703 | 3.76 | 5 x 20 mm M6 / 4 x 30 mm M6 / 4 x T-nuts |
| 1040 | Jet HA 1040 | 98 | 38.6 | 1040 | 161.2 | 9.2 | HA 280 | 64 | 25.2 | 1.853 | 4.09 | 5 x 20 mm M6 / 4 x 30 mm M6 / 4 x T-nuts |
| 1240 | Jet HA 1240 | 103 | 40.6 | 1240 | 192.2 | 8.6 | HA 280 | 64 | 25.2 | 2.052 | 4.52 | 5 x 20 mm M6 / 4 x 30 mm M6 / 4 x T-nuts |
| 1440 | Jet HA 1440 | 107 | 42.1 | 1440 | 223.2 | 8 | HA 310 | 64 | 25.2 | 2.406 | 5.31 | 5 x 20 mm M6 / 4 x 30 mm M6 / 4 x T-nuts |
| 1840 | Jet HA 1840 | 112 | 44.1 | 1840 | 285.2 | 6.8 | HA 310 | 64 | 25.2 | 2.772 | 6.11 |
5 x 20 mm M6 / 4 x 30 mm M6 / 4 x T-nuts |
